Hanut India IP55 / IP66 Junction Boxes


  metal
                                                      Junction box
                                                      India abc SS junction
                                                      box India
  wired
                                                      junction boxes
                                                      India

Hanut India IP 55 / IP65 Junction Boxes

Hanut India is pleased to launch a full range of IP55 / IP65 junction boxes and accessories for junction boxes. Hanut India junction boxes can be used indoor as well as outdoor.

Junction boxes are suitable for factory automation, machine control panel, electrical, CCTV, telecom and many other projects and applications.

Junction boxes with IP66 and IP67 protection level are now available with Hanut India.

Junction boxes made from

Stainless steel SS 202 / SS 304 / SS 316,

Die cast Aluminum [LM-6]

& FRP / Polycarbonate/ABS are also available at Hanut India.

Hanut India can supply bare [empty] junction boxes as well as wired junction boxes
[eg. push button stations, DOL & RDOL starter boxes, flame proof boxes].


Partial list of Customers: Andhra Petrochemicals Limited, IFFCO, GSECL - Gujarat State Electricity Corporation Ltd., NPCIL, Ratnagiri Gas And Power Pvt. Ltd.[www.rgppl.com],  RIL, GEA Engineering, Techpro, NTPC, Nelco, Shree cement, Jindal Power, Lanco, TATA STEEL DOWNSTREAM PRODUCTS LTD., Kolkata,....

End users: Torrent Power, SAIL, Essar Hazira, GAIL Pata, India cements, NTPC, PGCIL, Sterlite, Delhi Jal Board [sewage treatment plant], NTPC KAHRGONE via L&T Baroda,.....

State Electricity Boards where junctions boxes / electrical panels installed include
Uttarakhand Power Corporation Limited (UPCL)
Rajasthan Rajya Vidyut Utpadan Nigam [RRVUNL]
Maharashtra State Power Generation Co. Ltd. [MAHAGENCO]
GSECL, Vadodara Gujarat Electricity Board, Gujarat

Hulasi is now direct supplier to GAIL, NHPC, NTPC, BHEL, NPCIL, ECIL, L&T,...

Hulasi is now registered vendor in NTPC India [vendor code 1071514], GAIL, MECON,...

PGCIL has approved Hulasi make CT & PT junction boxes.

Orders for power junction boxes received for supply of junction boxes to Tata Steel [Jamshedpur], SAIL BHILAI.

June 2019 :: CT & PT Junction Boxes manufactured by Hulasi Metals, Jaipur shall be deployed in M/s Talcher Fertilizer Ltd., Odisha.

Salient features of Hanut India Junction Boxes

Superior protection against water entry
Hanut India junction boxes have unique rain gutter profile. This profile enhances the protection against water entry from any direction.

Self gripping EPDM gasket along with the rain gutter profile provides robust protection against dust and water entry up to IP55 level for a long time.

IP55 compliant compression cam lock [s] are provided as default. Bigger boxes are provided with three point locking arrangement.

RoHS compliant finishing
RoHS compliant surface pre treatment chemicals and powder coating paint are used during manufacturing of the Hulasi's junction boxes.

High accuracy and reliability
Hanut India junction boxes and other enclosures are manufactured in state of the art company owned & operated manufacturing facilities in India. Imported CNC machines, converized powder coating lines and well maintained ISO 9001 quality management system all help in ensuring production of high quality and robust enclosures and boxes.

Front door open 180 degrees & has hidden internal hinges. Door can removed and reinstalled by the end user  without using any special tool making installation & maintenance easier.

A wide variety of options and accessories are available to meet customers varied requirements. Please see the list of options and accessories given below.

Full customization of the junction boxes is possible to meet unique project requirements of customers. Hanut India can provide customized boxes quickly and economically.

Hulasi India can also supply junction boxes and racks as per NEMA protection rating.
                                                                                                                                                            TOP

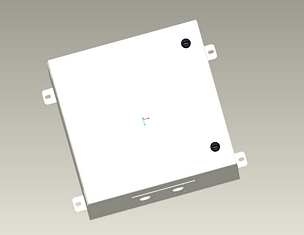

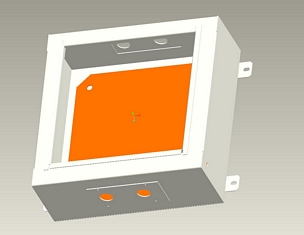

  Junction box by Hanut India

See more pictures of Junction Boxes


Options and accessories

Toughened glass window in the front door
Document pocket
rain canopy [solar shield]
35mm DIN channel
wide range of terminals and terminal blocks
pole mounting clamps
Stainless steel hinges
logo & silk screen printing
keyed lock in place of cam lock
Junction box can be supplied in Aluminum for installation in harsh environment.
natural and forced fan filter cooling solutions
Customized cut outs on door, mounting plate
bolted cable entry gland plate at the top
CFL light
Door limit switch

Junction boxes made from SS, die cast Aluminum and FRP are also available.


Standard scope of supply [BOM]
Junction box with
single front door with cam lock and key
2mm thick mounting plate
wall mounting hardware
wall mounting template
bolted cable entry gland plate at the bottom
stainless steel studs for grounding
Junction boxes are powder coated in light Grey RAL 7035 color

Boxes up to 400H/400W/210D are made from 1.2mm CRCA sheet and bigger boxes are made from 1.6mm CRCA sheet.





Standard sizes for IP55 Junction boxes  [External dimensions in mm]


  Height Width Depth
  300 300 210
  400 300 210
  400 400 210
  400 600 210 / 300
  600 400 210 / 300
  600 600 210 / 300
  800 400 210 / 300
  800 600 210 / 300
  800 800 210 / 300



Vent plug in SS
                                                304; Hanut India
Vent Plug in SS 304

IP67 vent plug
                                                India
Vent Plug in polyamide 6


Venting Element for enclosures, panels & junction boxes:

It is strongly recommended to install two or more
waterproof Venting Elements with IP6X rated enclosures, panels & junction boxes.

While keeping dust and liquids from entering the box these protective
vent plugs allow the box to breathe. The protective Vent plugs thereby prevent pressure and humidity built up inside the box.

Hanut India offer IP68 rated vent plugs [also called pressure respirator] with polyamide 6 outer body & light grey RAL 7035 color and in SS 304. Vent plug in SS 304 is expensive and has a longer order to dispatch lead time.

See data sheet for more information on the
protective waterproof vent plug.

==============

Junction boxes with
IP66 and IP67 protection level are now available with Hanut India.

IP66 rated junction boxes can protect the housed equipment from strong splashes of water. IP67 rated junction boxes provide even higher degree of protection. IP67 rated boxes can withstand temporary submersion in water.

==============
Industrial Plug & Socket Boxes

Industrial Plug &
                                              Socket Boxes India Industrial Plug &
                                              Socket Boxes picture

Industrial Plug &
                                              Socket Boxes picture
                                              panel  3 phase industrial
                                                plug socket JB India
                                                Hulasi


Hanut India also offers customized industrial plug and socket boxes.

 IP44 and IP65 rated 3 pin [single phase] & 5 pin [3 phase] sockets from reputed manufacturers like C&S, Hensel, are used in these Industrial Plug & Socket Boxes. Industrial plug socket JBs made by Hulasi have been type tested for IP65 compliance.

A wide variety of components like step down transformer, ELCB, RCBO, MCB, MCCBs,... etc. are factory fitted by Hanut India in its industrial plug and socket panels / junction boxes.

Customers include L&T and cement plants in Rajasthan.

Request Price Quote                   Junction box enclosures: Pictures                                                 TOP
