Cabinets |
| |
 |
| |
|
Cable
distribution
enclosures,
back
mount frames &
DDF frames for fixed
line
telecommunication
application
|
| |
|
|
| |
|
 |
|
Hanut
India: Wall mount
Distribution Point (DP)
Boxes are available in
10, 20, 50, 100, 200,
400 and 600 pairs sizes
and in standard and LL
(Long last)
constructions.
Wall mount DP boxes can
be purchased with or
without back mount
frames and IDC type
cable termination (CT)
blocks.
See
Image Gallery |
| |
|
Wall mount
Distribution Point
(DP) Boxes |
|
|
| |
|
|
|
 |
| |
|
|
|
| |
|
 |
|
Hanut
India Cable distribution
Sub pillars include
outer protective
metallic enclosure,
internal frame on which
back mount frames and CT
blocks are mounted,
cable management loops,
earthing wire, document
pocket and related
hardware.
Sub pillars
are available in 100
pairs, 200 pairs, 400
pairs and 800 pairs
sizes in standard and LL
(long last) models.
|
| |
|
Cable
distribution Sub
pillars
for mounting IDC type
Cable termination CT
blocks
|
|
|
| |
|
|
|
| |
|
|
| |
|
Cable
distribution (CD)
cabinets for
mounting IDC
type Cable
termination
CT blocks
|
|
Hanut
India CD Cabinets include
outer protective metallic
enclosure, internal frame
on which back mount frames
and CT blocks are mounted,
cable management loops,
earthing wire, document
pocket and related
hardware.
Hanut India
cable distribution (CD)
cabinets are available
in 1000 pairs, 2000
pairs and 2400 pairs
sizes in standard and LL
(long last) models.
|
| |
|
|
|
|
|
| |
|
|
|
| |
|
 |
|
stainless
steel back mount
frames for 2/10 &
2/8 dis-connection
type modules
Hanut India offers
back mount frames to mount
1, 5 and 10 numbers of 10
pair IDC type cable
termination blocks. Back
mount frames are made of
stainless steel (SS).
|
| |
|
Back mount
frames
|
|
| |
|
|
|
|
|
| |
|
|
|
| |
|
 |
|
3U
19” rack mountable DDF
frame with
capacity to house up to 30
numbers of IDC type CT
blocks that is 150E1
lines. DDF frame is
made of 2mm CRCA steel
with powder coating
finish.

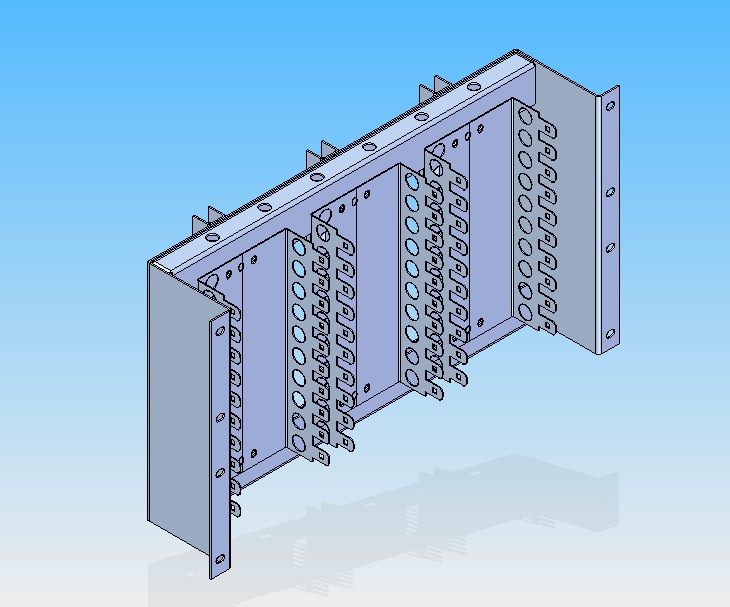

3U
19” rack mountable
DDF frame picture
|
| |
|
|
|
|
|
|
  |
|
Telecom
DDF / MDF frames
Hanut India offers telecom
DDF MDF frames. Single
pillar type telecom DDF rack
has capacity to accommodate
60nos. of 2/10 disconnection
type modules. six SS BMFs
are provided with the DDF rack
frame.
The two pillar type telecom
DDF MDF rack has capacity to
accommodate 140nos. of 2/10
disconnection type modules.
Fourteen SS BMFs are
provided with this DDF rack
frame.
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
| |
|
| Standard
Construction |
LL
(Long Last)
Construction |
| External
enclosure
including hat is
made of CRCA mild
steel and is
powder coating
with polyester
powder. |
External
enclosure
including hat is
made of GPC (Zinc
plated) mild steel
and is powder
coating with pure
polyester powder.
|
| Internal
frame which is
used for mounting
of back mount
frame and CT
blocks is made of
CRCA mild steel
and is Zinc
electro plated. |
Internal
frame is made of
stainless steel. |
| Backmount
frame is made of
stainless steel. |
Backmount
frame is made of
stainless steel. |
| Hardware
(screws and nuts)
are primarily zinc
plated mild steel
type. |
Hardware
(screws and nuts)
are primarily made
of stainless
steel. |
|
| |
|
|
| |
|
Initial
cost of our LL (Long Last)
Dp boxes and Cable
Distribution cabinets is
more than the price of
standard Dp boxes and
Cable Distribution
cabinets. This higher
initial cost is more than
compensated by the
significantly longer field
life of LL (Long Last)
models over standard
construction models. |
| |
|
|
| |
|
We
therefore recommend
our LL (Long Last) Dp
boxes and Cable
Distribution cabinets. |
| |
|
|
| |
|
Customers
of Hanut wall mount
distribution point (DP)
boxes and Cable
distribution (CD) cabinets
include companies like
Touchtel, Shyam Telelink
and TATA Teleservices.
Hanut India can customize
its wall mount
distribution point (DP)
boxes and Cable
distribution (CD) cabinets
as per customers’
requirements and
specifications.
Contact
us for more
information and/or placing
order.
|
| |
|
|
| |
|
|
